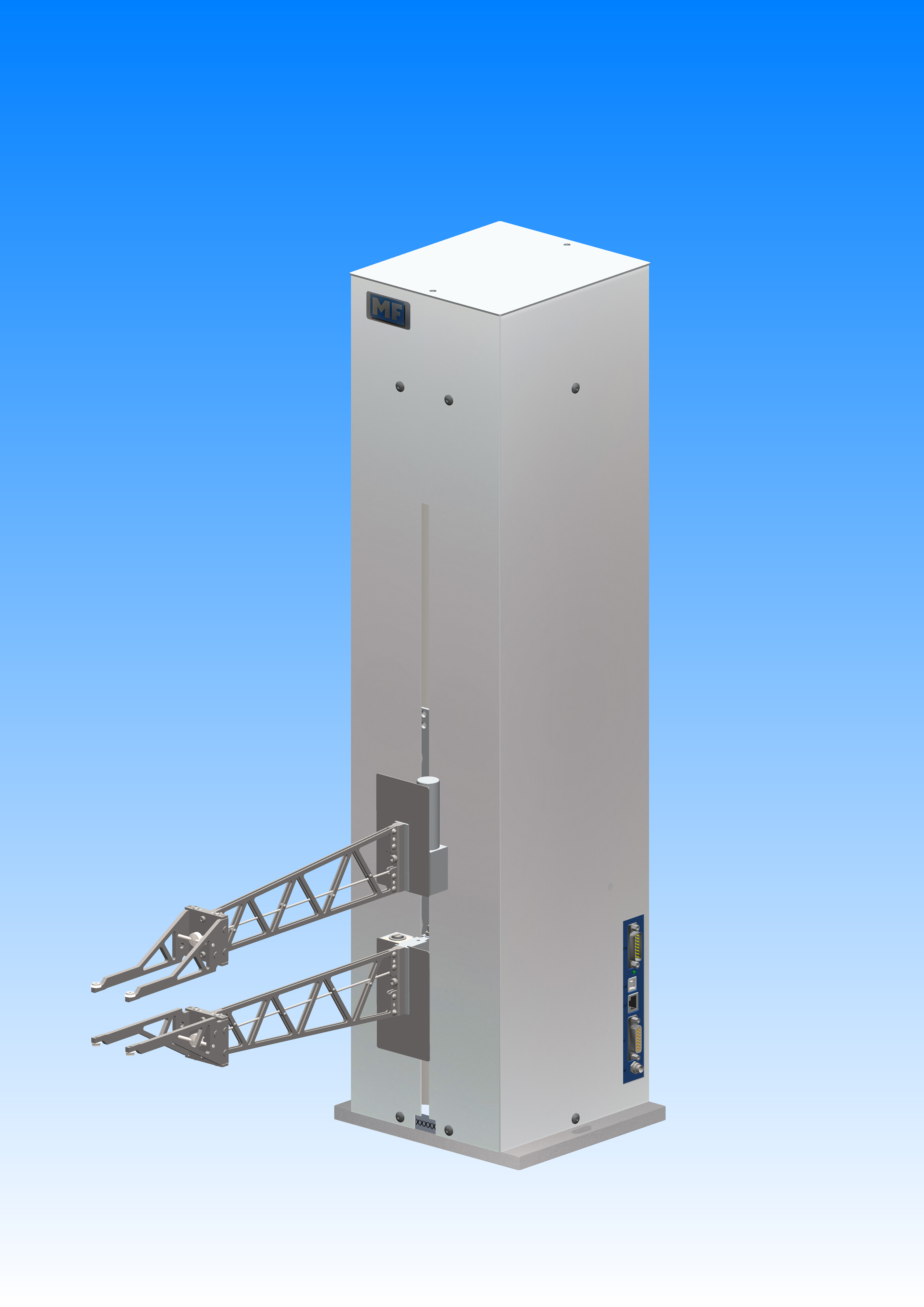

MFX with climatic chamber measuring arms
The climatic chamber measuring arms are suitable in combination with MFX 200-B, MFX 500-B and the MFE 900 to detect extensions at tensile tests in climatic chamber.
Advantages:
- Accuracy class 1 (EN ISO 9513)
- Fitted for temperatures from -70 °C till +350 °C
- Initial gauge length from 10 mm
- Automatic movement to the position and the gauge length
- Automatic attachment at the specimen
- Measuring travel of 200 mm or 500 mm minus gauge length
- Low activating force (max 10 cN)
- Operating range in upper and lower testing space possible
Please learn more details from the technical data sheets:
MFX with climatic chamber measuring arms product description
