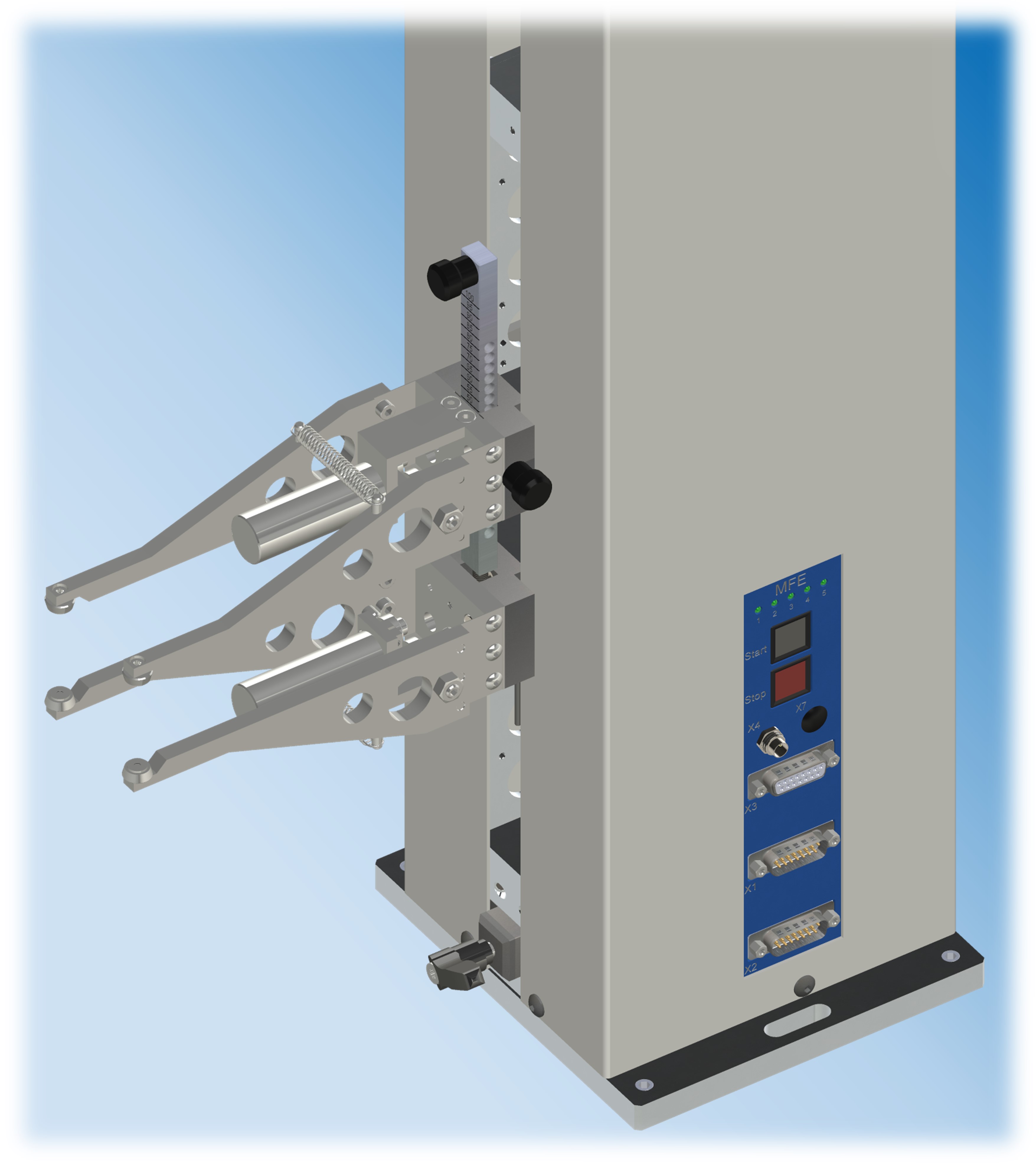

MFE 900 Long-travel feeler-arm extensometer
The MFE 900 extensometer is specifically designed for applications with highly lengthening materials such as plastics and rubber, incorporating long travel (up to 900 mm). The MFE complements relatively low-cost instruments used for the testing of plastics. At this semi-automatic working measuring device, the position and the gauge length have to be set manually whereas the moving to this position and the gauge length as well the attachment at the specimen, are done by electromotive drives. Meanwhile a lot of additional versions and add-ons are available for this device (see below).
Advantages:
- Already in class 1 from 1 mm stroke and even class 0.5 from 8 mm stroke (EN ISO 9513)
- Measuring displacement of 900 mm
- Initial gauge length from 10 mm to 100 mm in steps of 5 mm
- Manual adjustment of the position and gauge length
- Automatic attachment at the specimen
- Clamping force of 150 cN
- Activating force of max. 10 cN
- Extensible with the MFQ-A for transverse measurement
Additional version:
- MFE with 1200 measuring displacement (Accuracy equal to MFE 900)
- Measuring direction downwards
- Climatic chamber version
- Measurement of ring stiffness (DIN EN ISO 9969)
- Measurement of tube (pipe) inner diameter
- Measuring arm for bending tests
Please learn more details from the technical data sheets:
