MFS Extensometer for screws

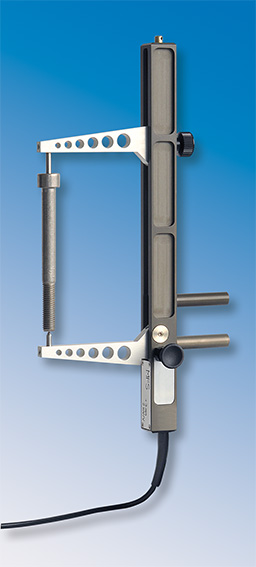

The clip-on extensometer MFS is used to measure the elongation of bolts in tensile testing. The elongation of the bolt test specimen is detected over the entire length using measuring tips. We meanwhile offer twelve different versions, which differ in the measuring arm lengths or measuring paths as well as in the lengths of the screws to be tested.
Advantages:
- Accuracy class 0.5 / 1 (EN ISO 9513)
- Very easy attachment on a screws sample
- Versions with a measuring displacement of 4, 8 and 12 mm
- Clamping force 8 N
- Smallest screws length 15 mm
- Longest screws length 500 mm
Versions:
- MFS 150 – for screws length till 150 mm
- MFS 220 – for screws length till 220 mm
- MFS 300 – for screws length till 300 mm
- MFX 500 – for screws length from 220 till 500 mm
Please learn more details from the technical data sheets:
