MFD Measured value acquisition at compression direction

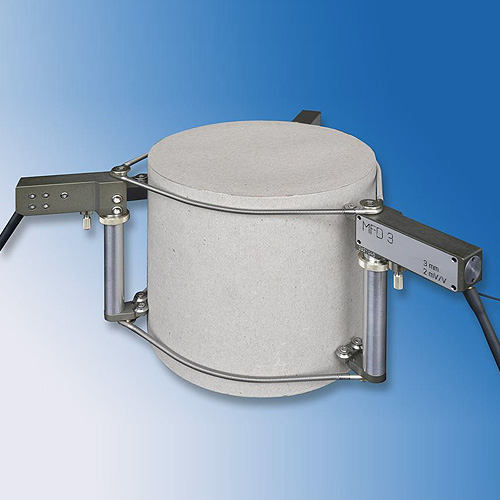

The extensometer system MFD is suitable to determine the strength of pressure (ASTM D-2938) or the modulus of elasticity respectively (ASTM D-3148) of concrete cylinders or rectangular prism under longitudinal compressive stress. The application is carried out with two, three (as shown on the picture) or four gauge lines.
Advantages:
- Accuracy class 0.5 (EN ISO 9513)
- Measuring travel 3 mm
- Activating force from 10 cN till 60 cN
- With the included clamping device a simple and symmetrical adjustment is achieved
- Extensible with the MFU 4 for circumferential measurments
Additional Versions:
- MFD 2 for cylindrical or rectangular samples
- MFD 3 for cylindrical samples
- MFD 4 for cylindrical or rectangular samples
Please learn more details from the technical data sheets:
